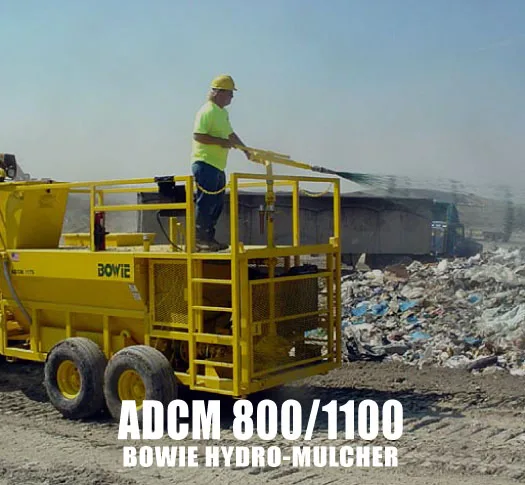

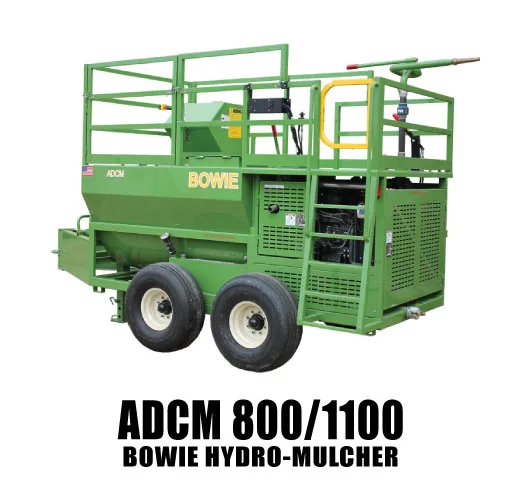

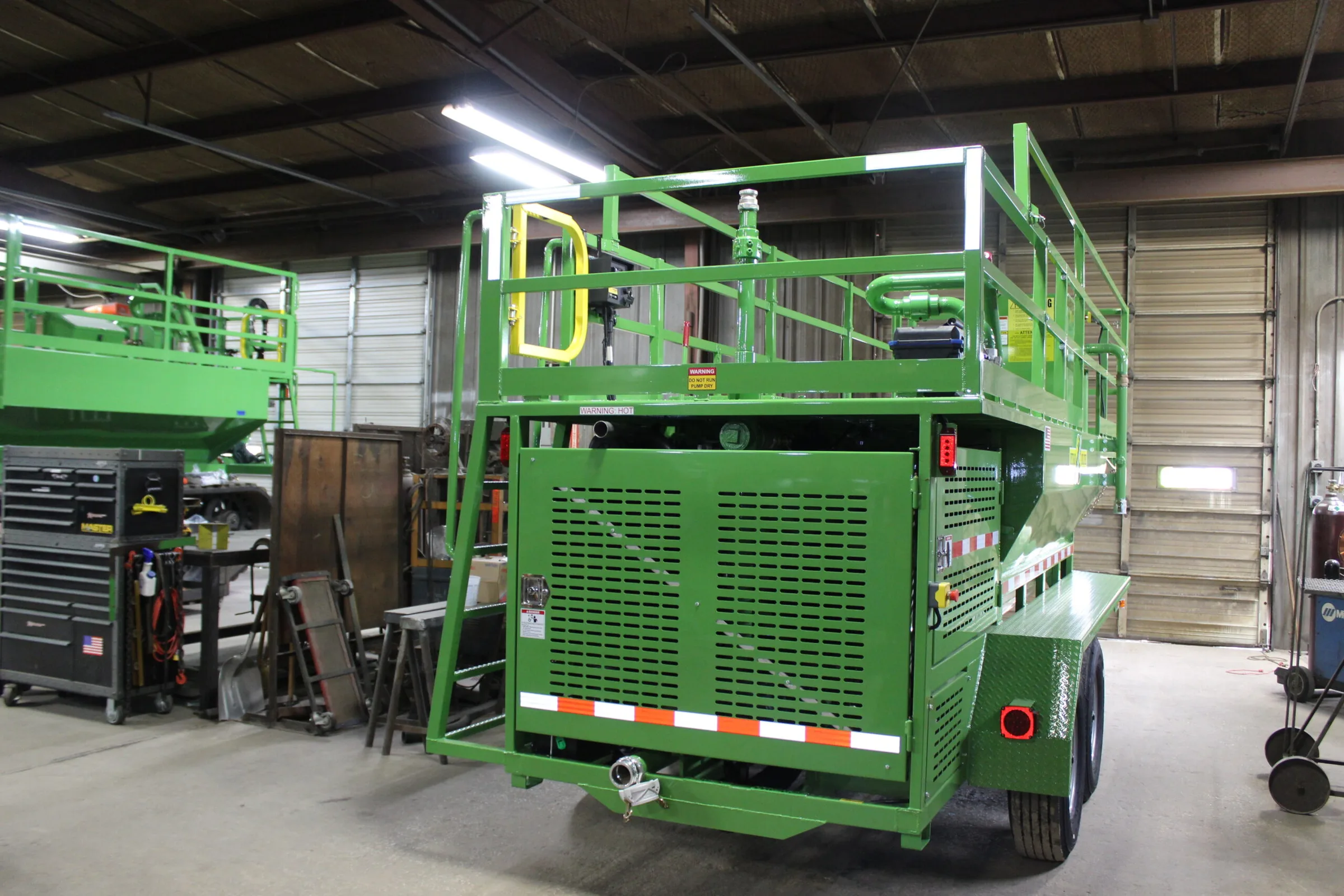

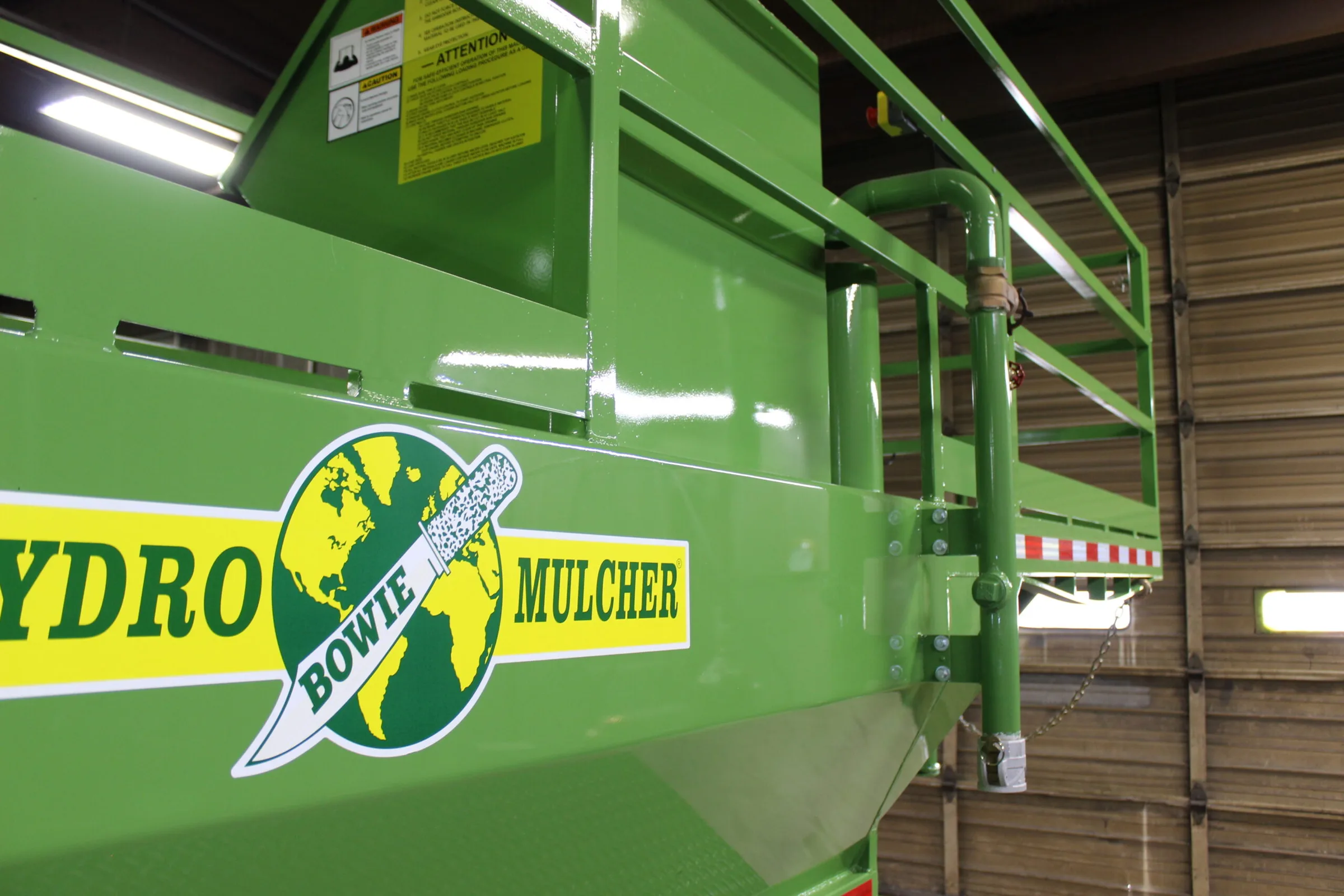

Bowie Industries manufactures two models of ADCM landfill machines, the ADCM 800 and the ADCM 1100. These units are identical in every feature other than tank capacity. Both models are mounted on large diameter, thick wall flotation tires and have a heavy-duty reinforced tongue with an adjustable hitch.
Bowie ADCM 800
Clear water flush system and capacity of 958 US Gallons.
Bowie ADCM 1100
Clear water flush system and capacity of 1135 US Gallons.

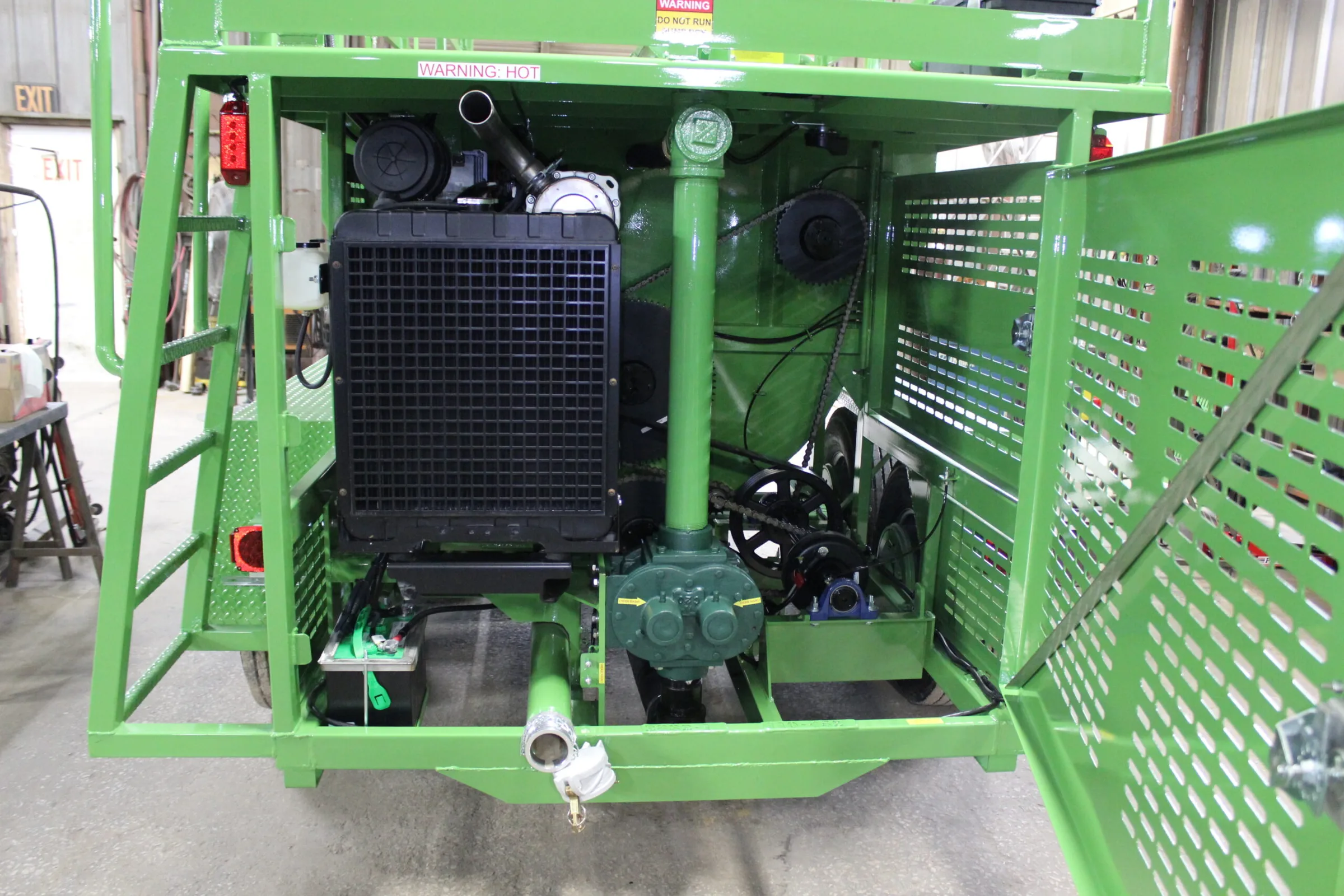

These units are powered by a 49 hp John Deere diesel engine and utilize a Bowie 3500 series gear pump providing greater discharge distance without cavitations or clogging problems. The mulch shredder bar provides faster loading and mixing without start-stop or reverse agitation. All units come with a clear water flush system for cleaning the pump and tower. For your daily landfill cover requirements, you can rely on Bowie’s “Built Strong…Built to Last” equipment!
ADCM 800/1100 Product Brochure
Download additional spec sheets and operating manuals for the Bowie ADCM 800/1100 Alternative Daily Cover Mulcher on our Resources page.
Specifications | Standard Included Parts & Equipment |
|---|---|
| With John Deere Engine: John Deere Diesel 99 HP T3-Export With Kohler Engine: Kohler 74 hp FT4 Diesel Engine DOC Only | 4 Nozzles (EC1735, EC1739, EC1740, EC1749) |
| Pump: 5″ X 3″ Centrifugal Pump | 4-Part F Quick Couplers |
| Length: 16’-4” (475 cm)* | 1-Part D Quick Coupler |
| Width: 7’-9” (236 cm)* | 1-Reducer (EC1724) |
| Height With John Deere Engine: 8’-2” (248 cm)* Height With Kohler Engine: 9’-8” (295 cm)* | Spanner Wrench |
| Empty Weight With John Deere Engine: 8337 lbs (3782 kg) Empty Weight With Kohler Engine: 10615 lbs (4815 kg) | Parts Manual Engine Manual |
| Liquid Capacity With John Deere Engine: 1808 US Gallons (6844 Liters) Liquid Capacity With Kohler: 3171 US Gallons (12004 Liters) | Warranty |

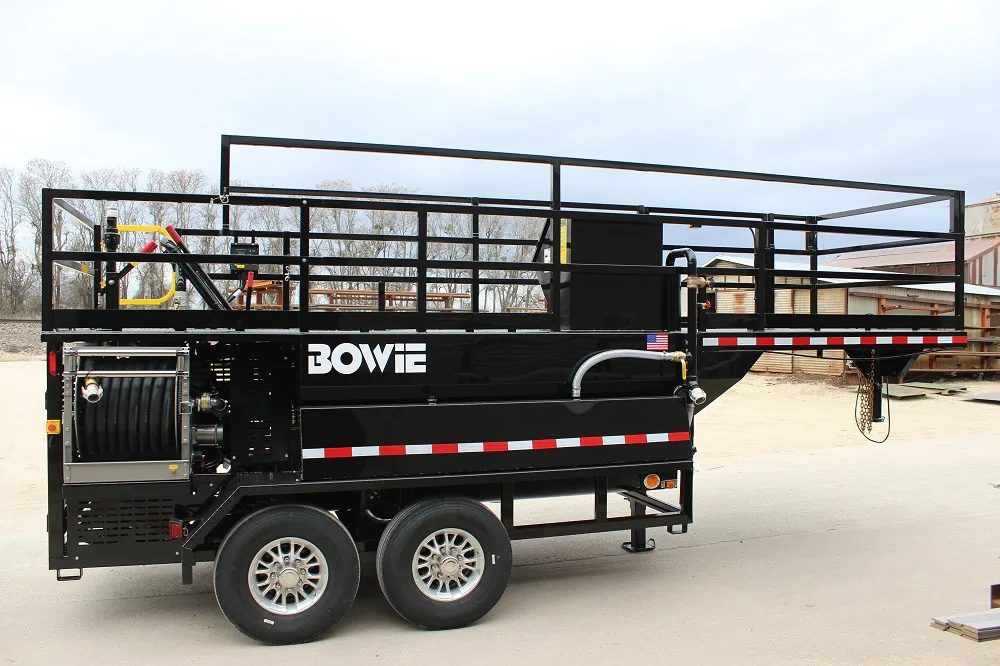

| Optional Equipment: Clear Water Flush System Engine PTO Ground Control Hose Reel |
* Operating Dimensions All specifications subject to change without notice.
